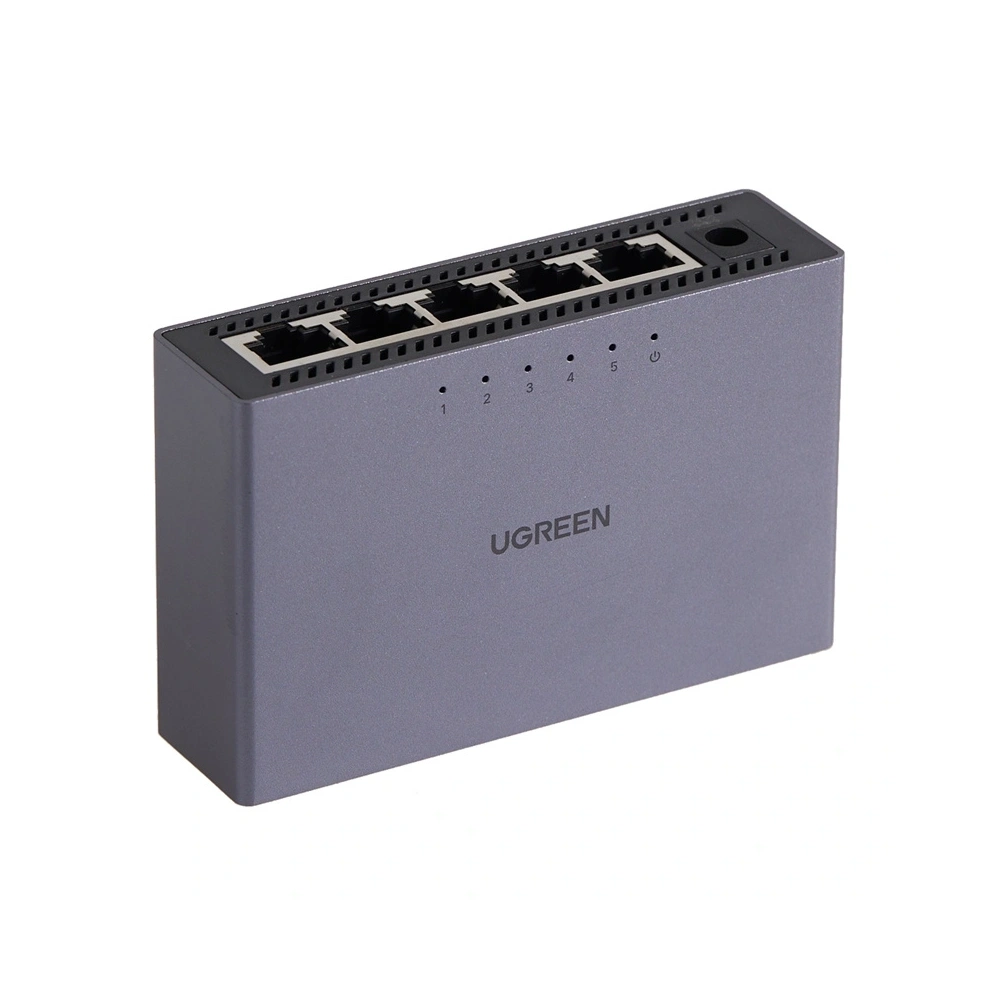

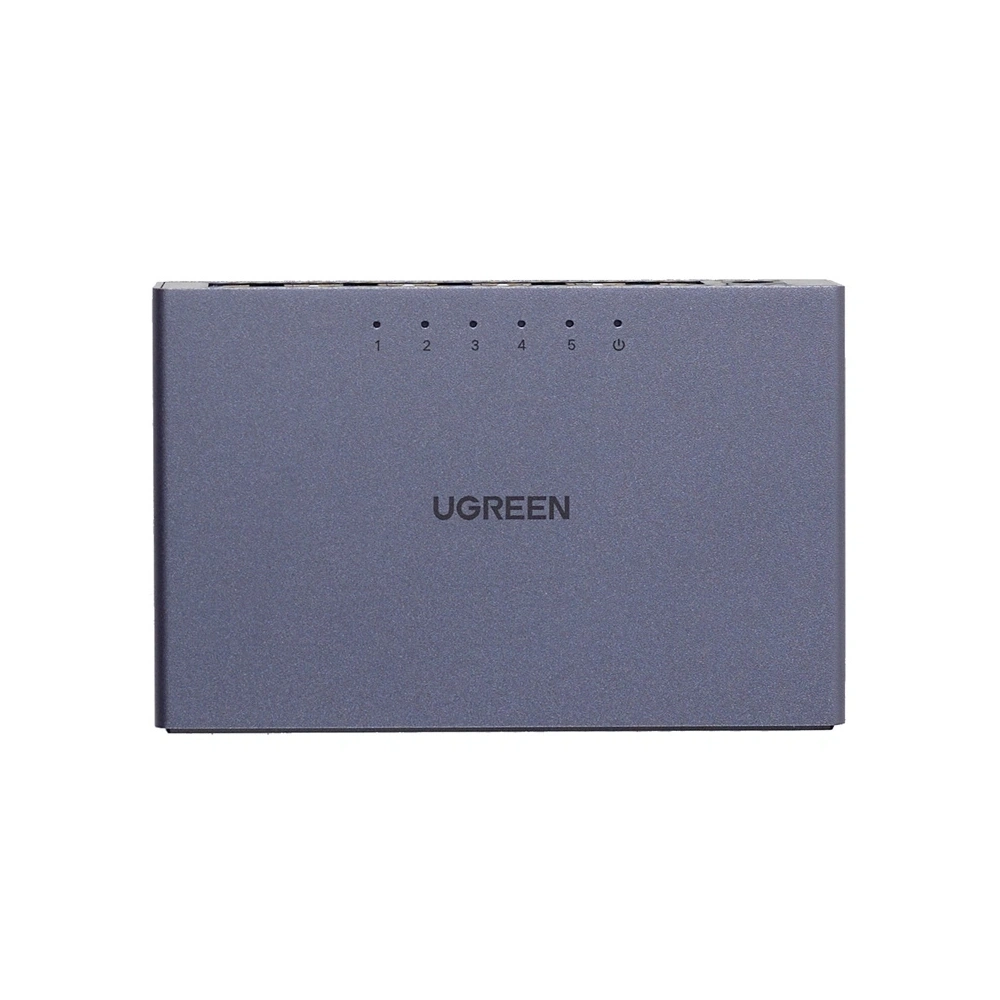

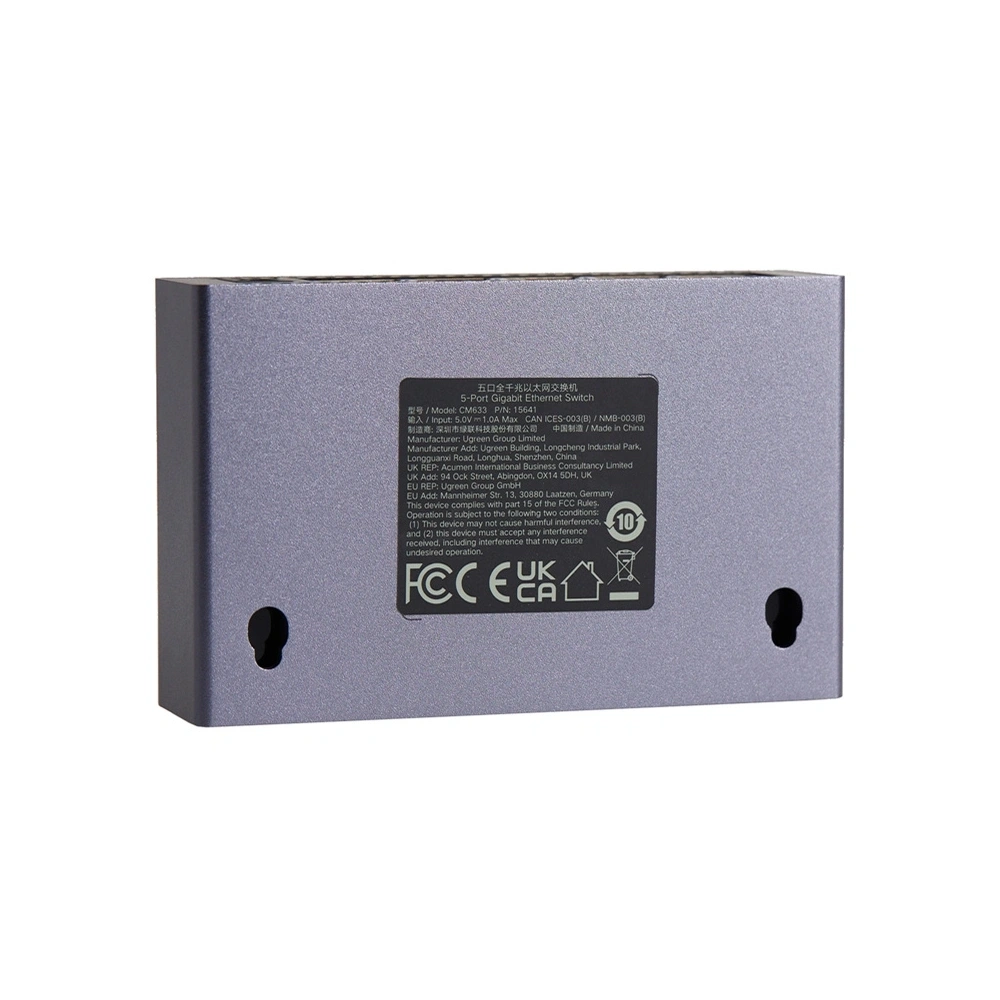

UGREEN CM633 5-Port GigaBit Ethernet Switch (Black)
UGREEN CM633 – reliable connectivity at gigabit speeds
The UGREEN CM633 network switch is the perfect solution for home and office networks, providing stable and fast connections without delays. With 5 gigabit Ethernet RJ45 ports supporting auto-negotiation speeds of 10/100/1000 Mbps, you can connect multiple devices such as computers, Smart TVs, gaming consoles, or network printers. Store-and-Forward technology and full non-blocking bandwidth ensure maximum transmission efficiency with no packet loss and speed limitations.
High performance and stability
The UGREEN CM633 is a switch that adapts to your needs. Each of the five ports automatically detects the connection speed and operates at the maximum possible bandwidth. With support for full and half-duplex mode, the device can simultaneously send and receive data, increasing network efficiency. The Auto MDI/MDIX feature eliminates the need for special crossover cables – just connect a standard cable, and the switch will automatically adjust the configuration. The 10 Gbps bandwidth ensures that even during heavy usage, such as video streaming or transferring large files, the network operates smoothly without delays or speed drops.
Durable construction and smart cooling
The UGREEN CM633 features a metal housing with a ventilation system that effectively dissipates heat and increases the device's lifespan. Its silent operation makes the switch perfect for both office and home use.
Easy installation and energy savings
Thanks to the Plug & Play feature, the device requires no complicated configuration – just connect the cables, and the switch will automatically recognize the connected devices and adjust the transmission parameters. Additionally, energy-saving technology dynamically adjusts power consumption, reducing energy usage without affecting network performance.
| Manufacturer | UGREEN |
|---|---|
| Model | CM633 |
| Manufacturer code | 15641EU |
| PoE (Power over Ethernet) support | No |
| Network standards | IEEE 802.3/u/x/ab |
| Number of ports | 5 × RJ45 |
| Speeds | 10/100/1000 Mbps (auto-negotiation) |
| Supported features | Auto MDI/MDIX; Support for full and half-duplex transmission modes; Dynamic learning and aging of MAC address entries; Full non-blocking bandwidth |
| LED indicators | 1 × power indicator; 5 × connection and activity indicator (Link/Act) |
| Transmission media | 10Base-T: Cat 3 or newer cable (max. 100 m); 100Base-TX: Cat 5 or newer cable (max. 100 m); 1000Base-T: Cat 5 or newer cable (max. 100 m) |
| Bandwidth | 10 Gbps |
| Transmission method | Store-and-Forward |
| Packet forwarding speed | 10 Mbps: 14,880 pps/port; 100 Mbps: 148,800 pps/port; 1000 Mbps: 1,488,000 pps/port |
| MAC address table | 2K entries |
| Jumbo frame buffering | 9K |
| Input | AC 100-240V 50Hz/60Hz |
| Output | DC 5.0V = 1.0A Max |
| Operating temperature | 0°C – 40°C |
| Operating humidity | 10% – 90% RH, non-condensing |
| Storage temperature | -40°C – 70°C |
| Storage humidity | 5% – 90% RH, non-condensing |
