UGREEN CM293 KVM (Keyboard Video Mouse) switch 4 x 1 HDMI (female) 4 x USB (female) 4 x USB Type B (female) black
Description
KVM Switch with 4 HDMI ports Ugreen – black (CM293)
Are you using more than one computer at the same time and want to connect one keyboard + mouse set to them? Or a flash drive or printer? The Ugreen CM293 switch not only gives you this option but also makes it easy to switch between devices. It’s a great device if you care about high-quality audio and video.

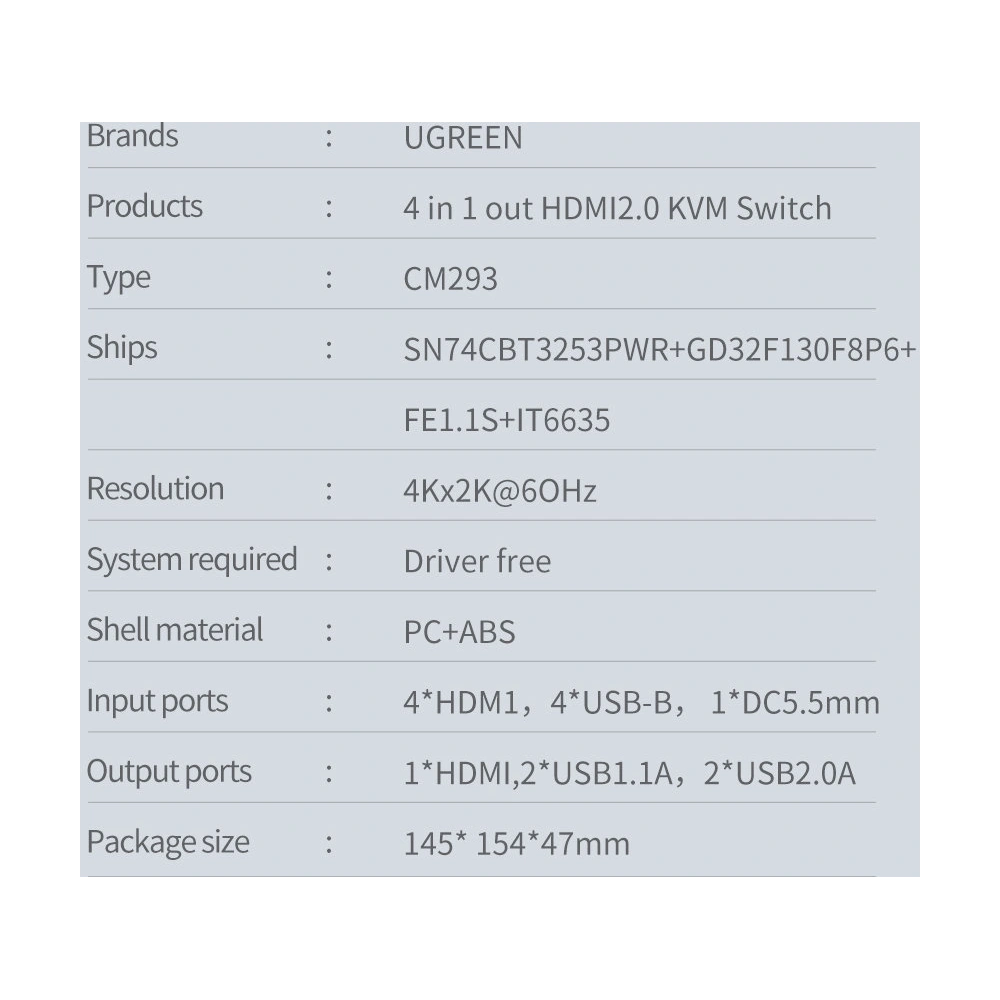

Specifications:
- Brand: Ugreen
- Model: CM293
- Ports:
- 1 x HDMI 2.0 (output)
- 4 x HDMI 2.0 (input)
- 2 x USB Type A 1.1 (input)
- 2 x USB Type A 2.0 (input/output)
- 4 x USB Type B 2.0 (input/output)
- Video standards: HDCP2.2, HDCP1.4
- Supported resolution:
- total length of HDMI cables up to 10 m – 4K@60Hz
- total length of HDMI cables up to 20 m – 4K@30Hz
- Audio support: 192KHz 24bit (max)
- Supported audio formats: DTS, DSD, Dolby AC3 5.1 & 7.1

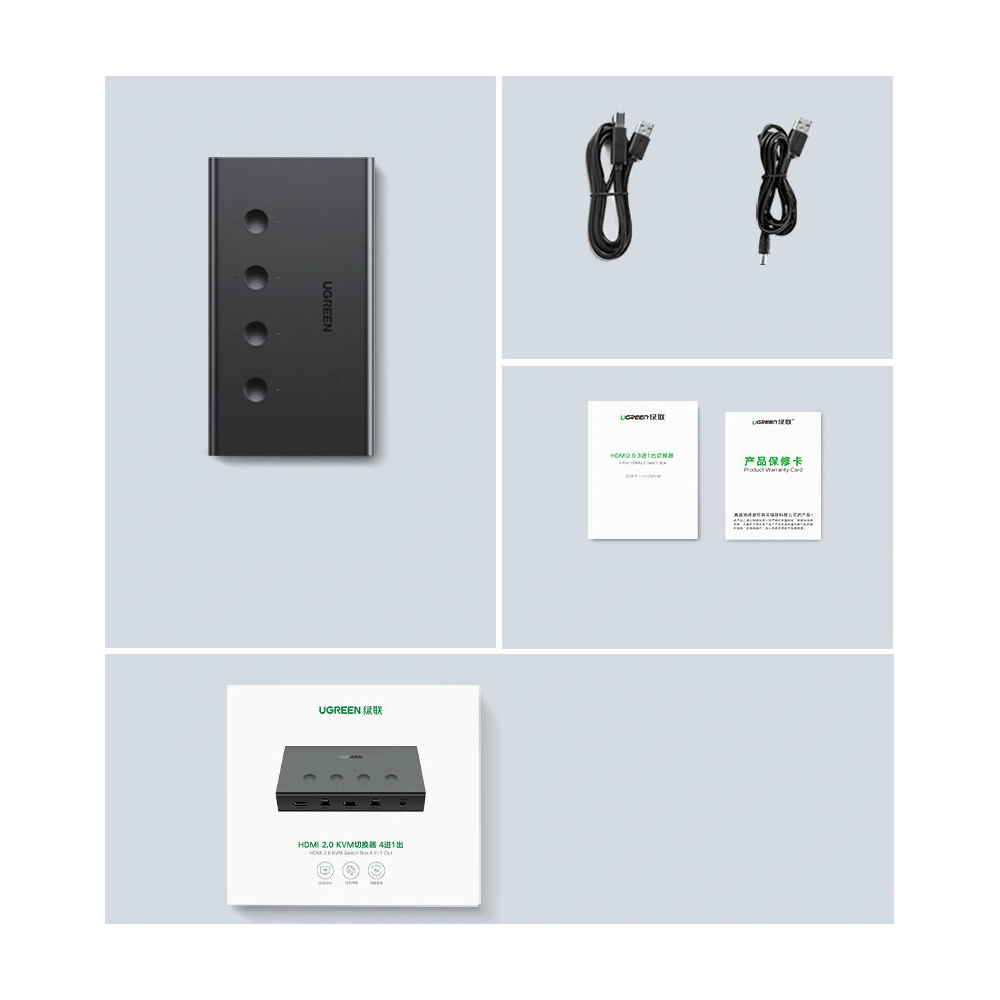

- Included:
- 4 male USB Type A – male USB Type B cables, 1.5 m long
- 1 m power cable

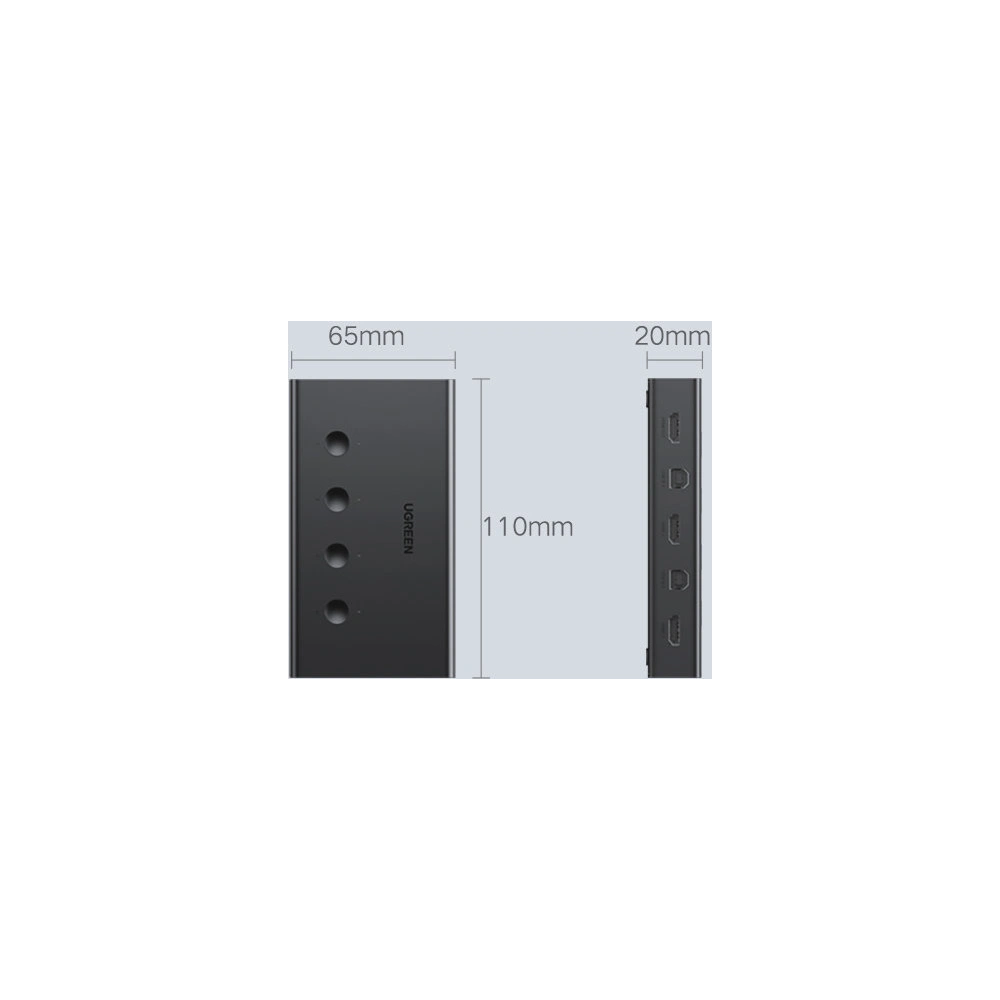

- Dimensions: 110 x 65 x 20 mm
Main advantages of the KVM switch Ugreen CM293:

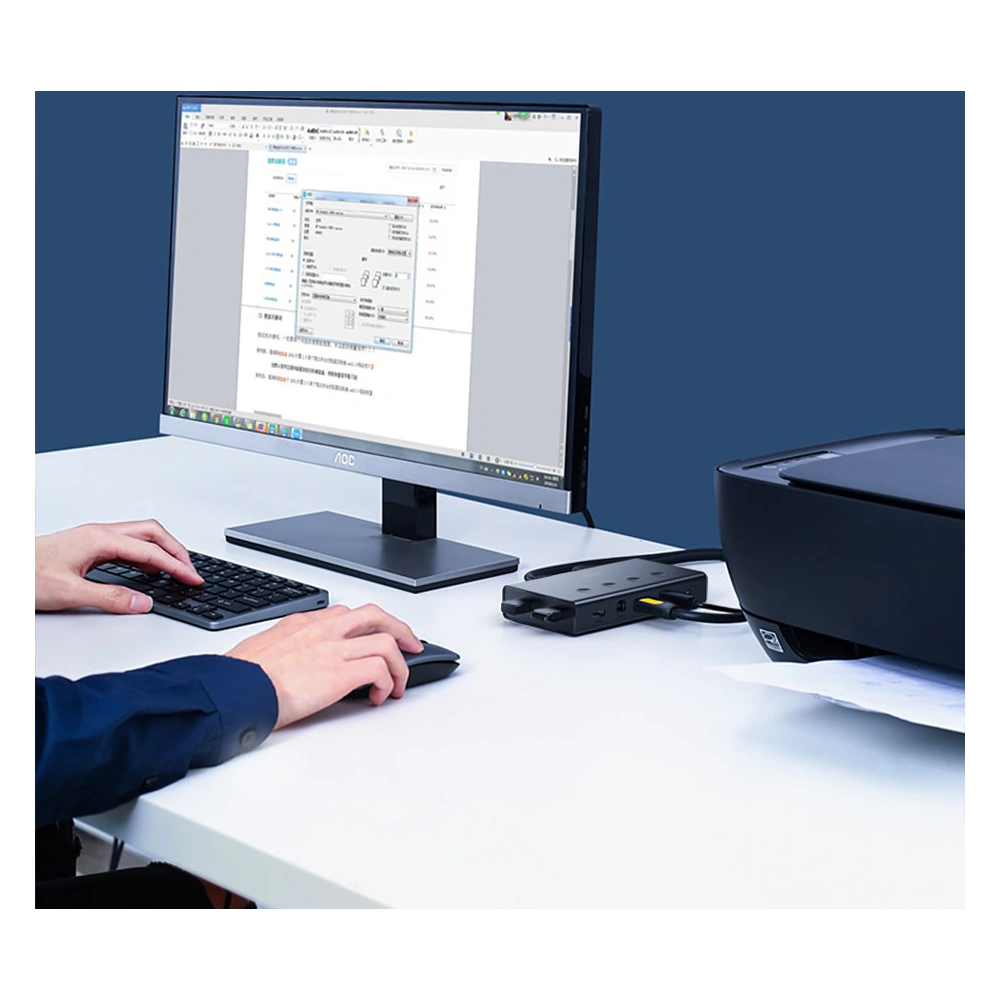

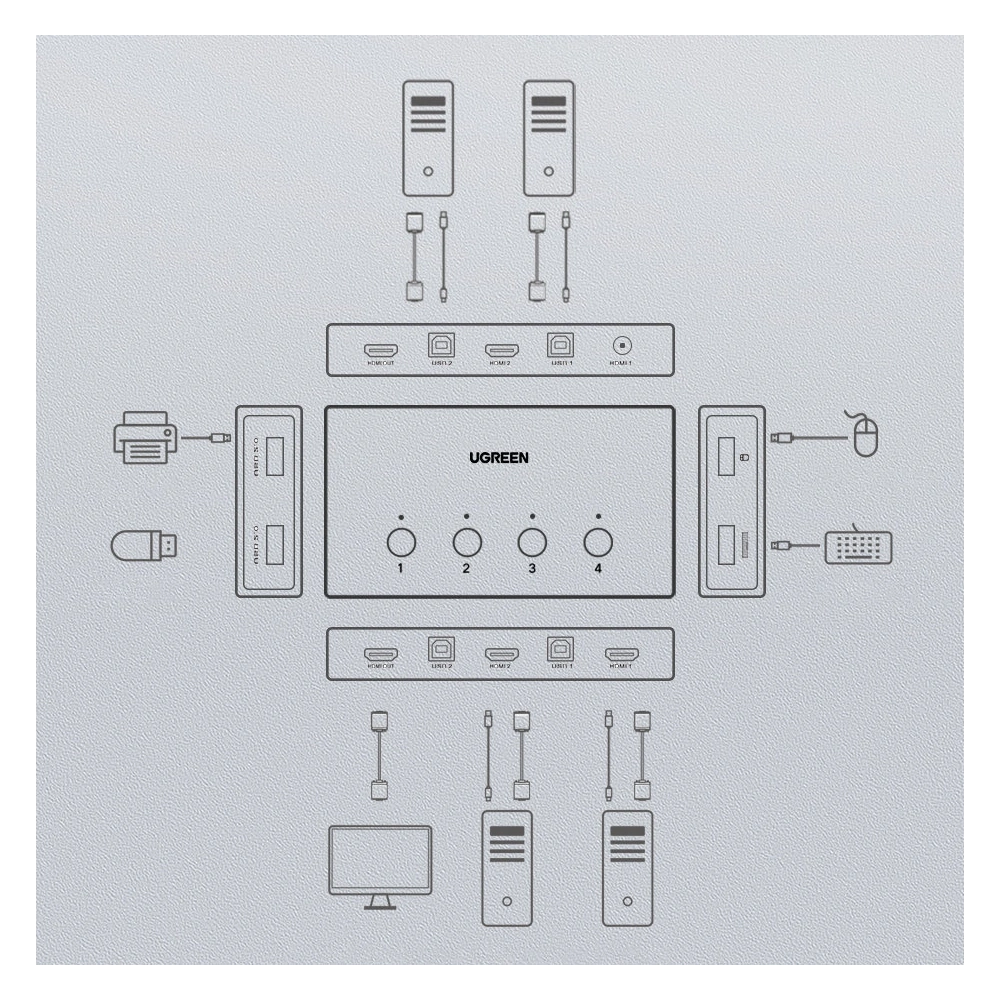

- You can connect one mouse, keyboard, printer, or flash drive to up to 4 computers at the same time. The switch distributes the signal from the input device to 4 USB and HDMI ports.
- No software is needed. The switch operates in Plug and Play mode and is compatible with macOS, Windows, and Linux systems.
- Easy to operate your devices. Just use the built-in buttons on the switch.
Multifunctionality at hand

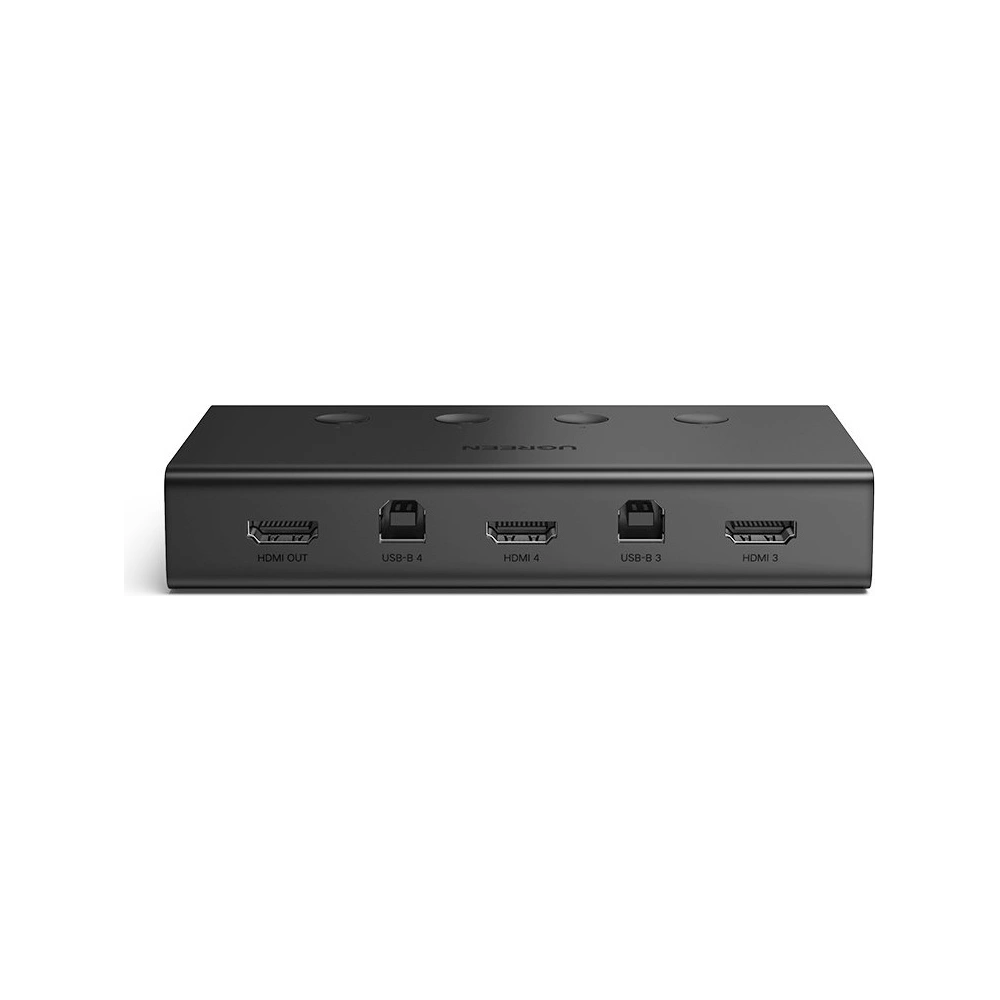

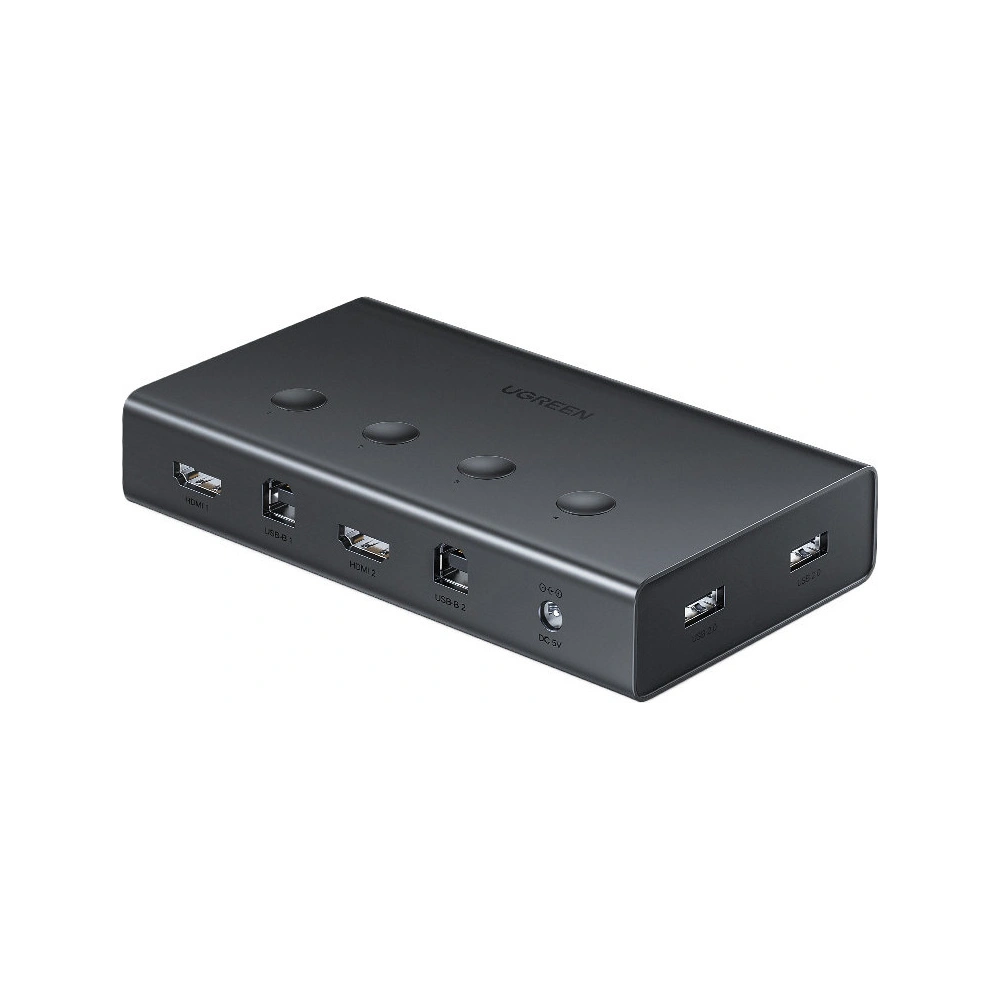

This functional adapter has four HDMI inputs and four USB – including two USB Type A 1.1 and two USB Type A 2.0. It allows for connecting one device to four computers simultaneously, for example, a mouse or keyboard, or even sharing a printer or flash drive.
High-resolution audio and video

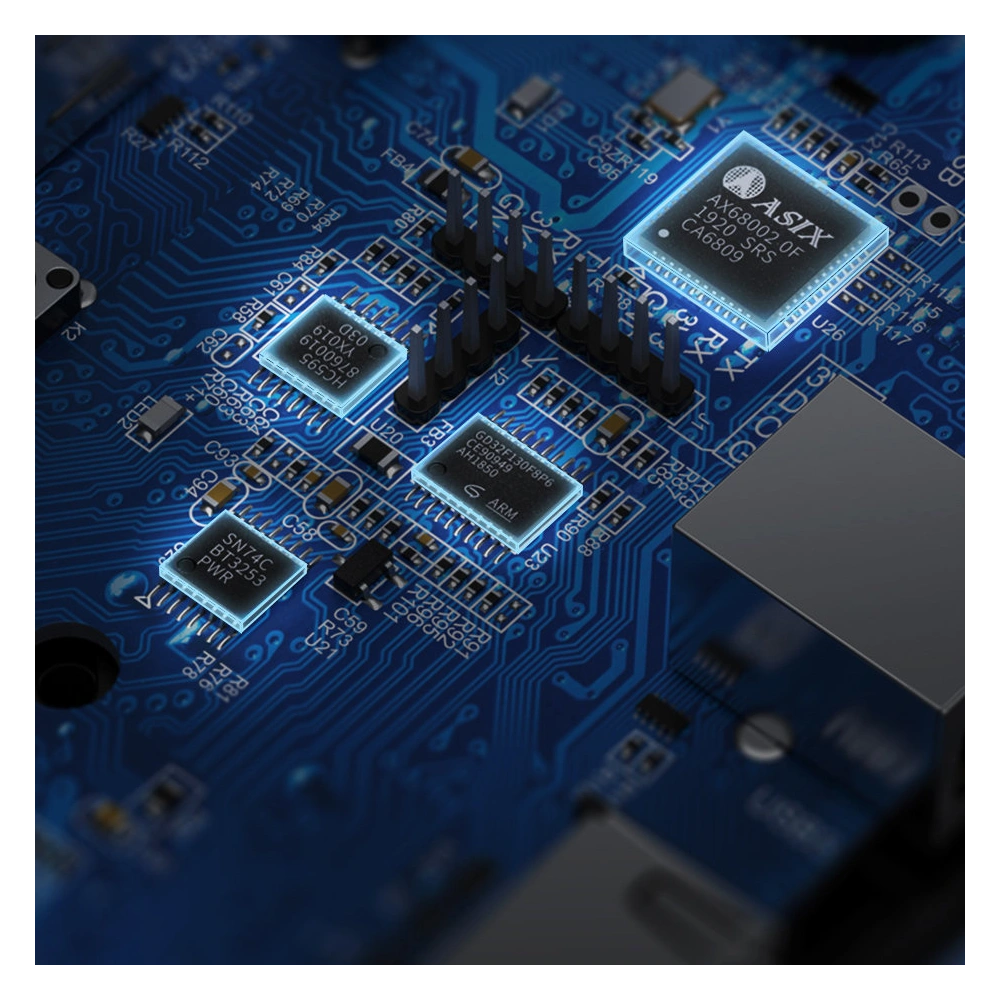

The KVM switch ensures perfect synchronization of audio and video signals. It supports audio formats DTS 5.1 and 7.1, and stable data transmission at speeds up to 18Gbps is ensured by four built-in chips: FE 1.1S, IT6635, SN74CBT3253PWR, and GD32F130F8P6. If the total length of the cables entering and exiting the device is 10 meters, the device will display high-resolution images – up to 4K / 60 Hz. Above 10 meters, the maximum resolution will be 4K / 30 Hz. The image resolution depends on the signal sent by your PC, laptop, video player, or game console.
Easy operation

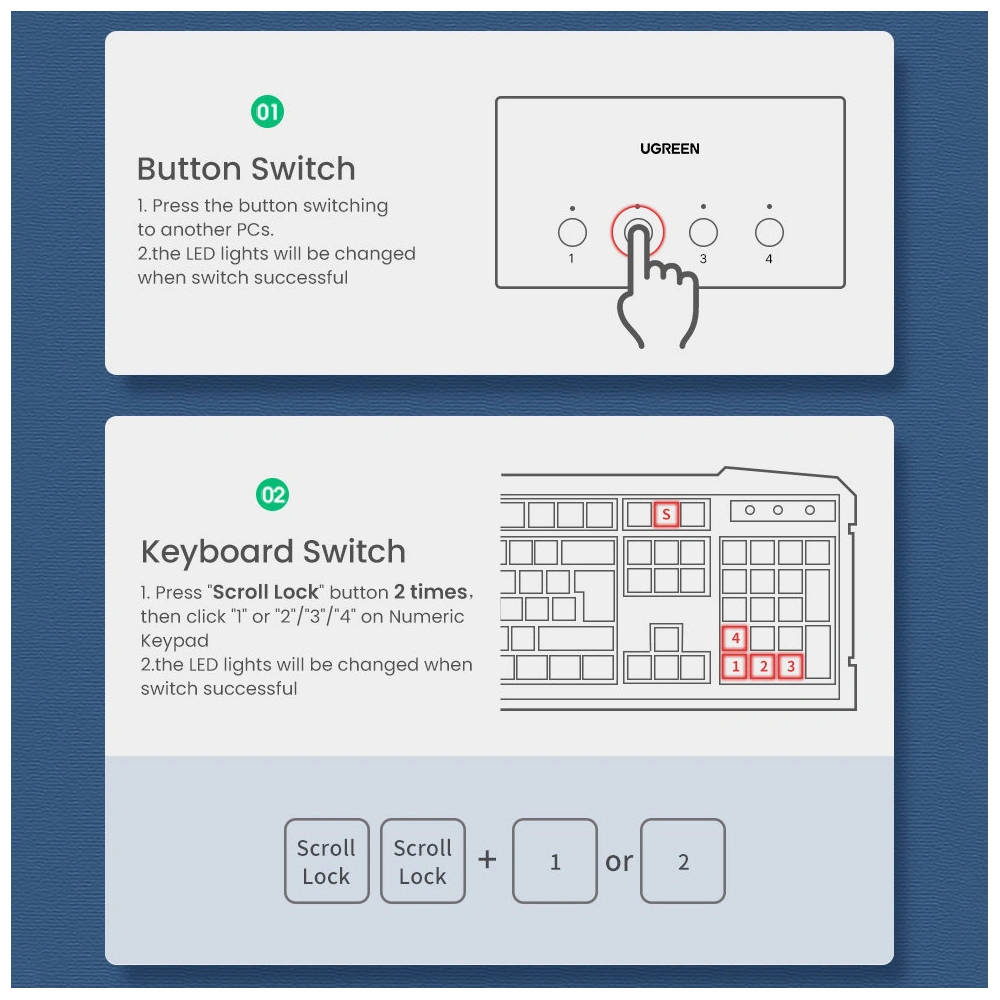

The device is compatible with macOS, Windows, and Linux systems. You do not need any software for it: the switch works in plug and play mode. To switch between computers, you can:

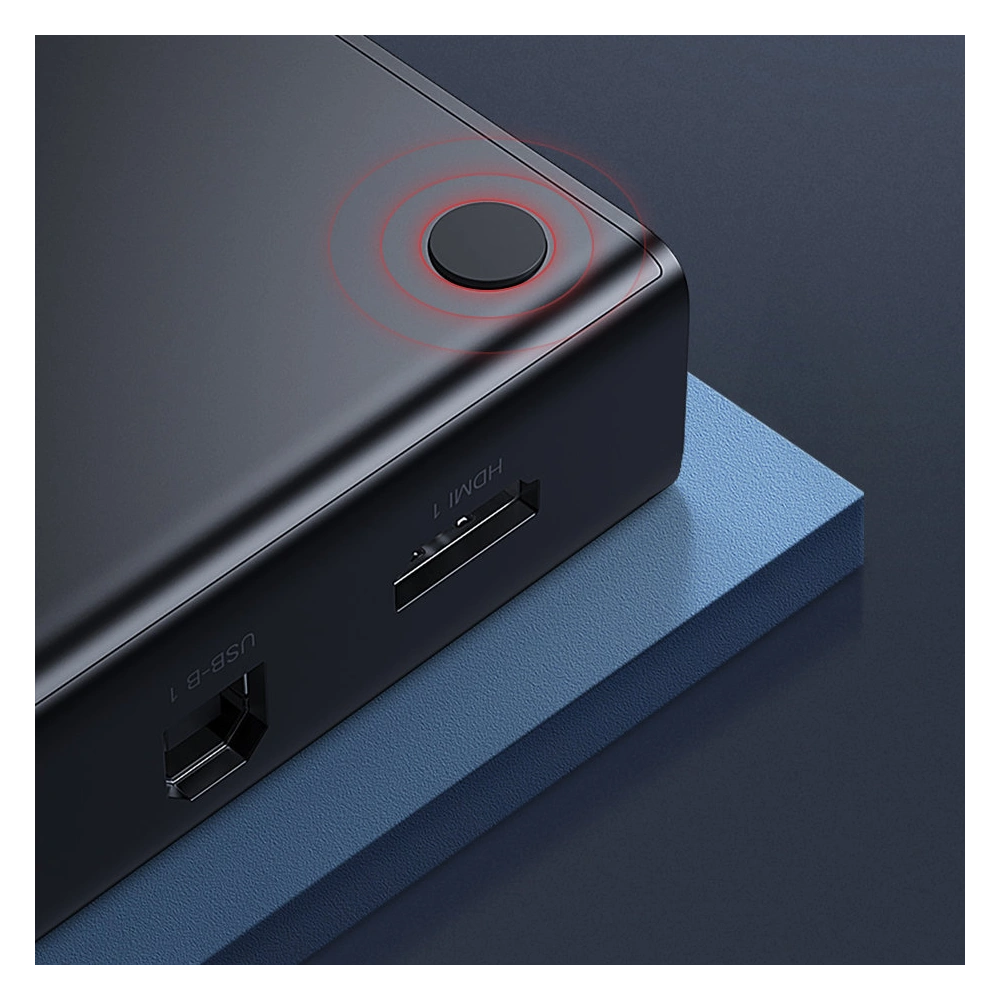

- use the buttons on the casing. Press one of the buttons to switch between computers. The LED will light up if you successfully switch computers.
- use the keyboard. Press the Scroll Lock key twice, then the number between 1 and 4 on the numeric keypad. The LED will light up if you successfully switch computers.
Friendly design
The device has four silicone pads attached to the bottom, which prevent it from sliding on the surface of a table, desk, or cabinet. The casing is designed to be displayed prominently.
