WiFi/Bluetooth/ZigBee Matter control panel SONOFF NSPanel Pro 120 (white)
WiFi/Bluetooth/ZigBee Matter Control Panel SONOFF NSPanel Pro 120 (white)

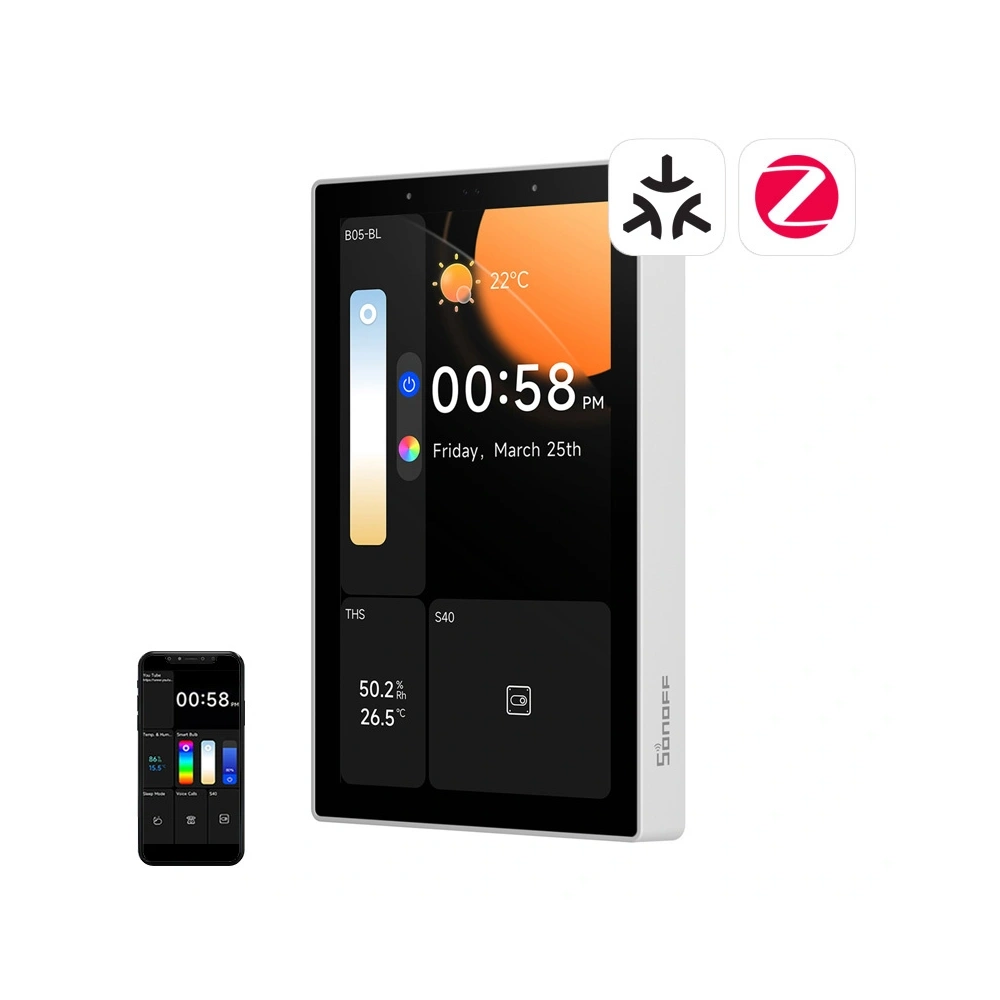

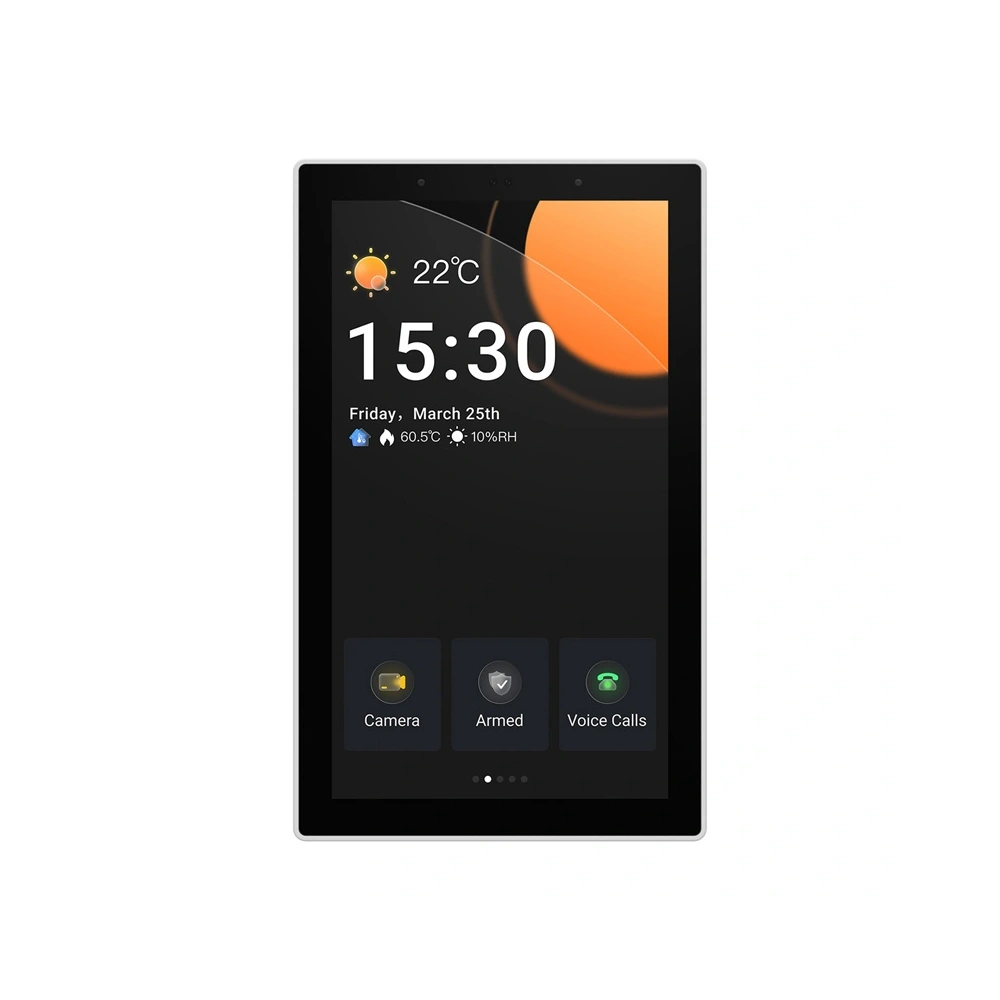

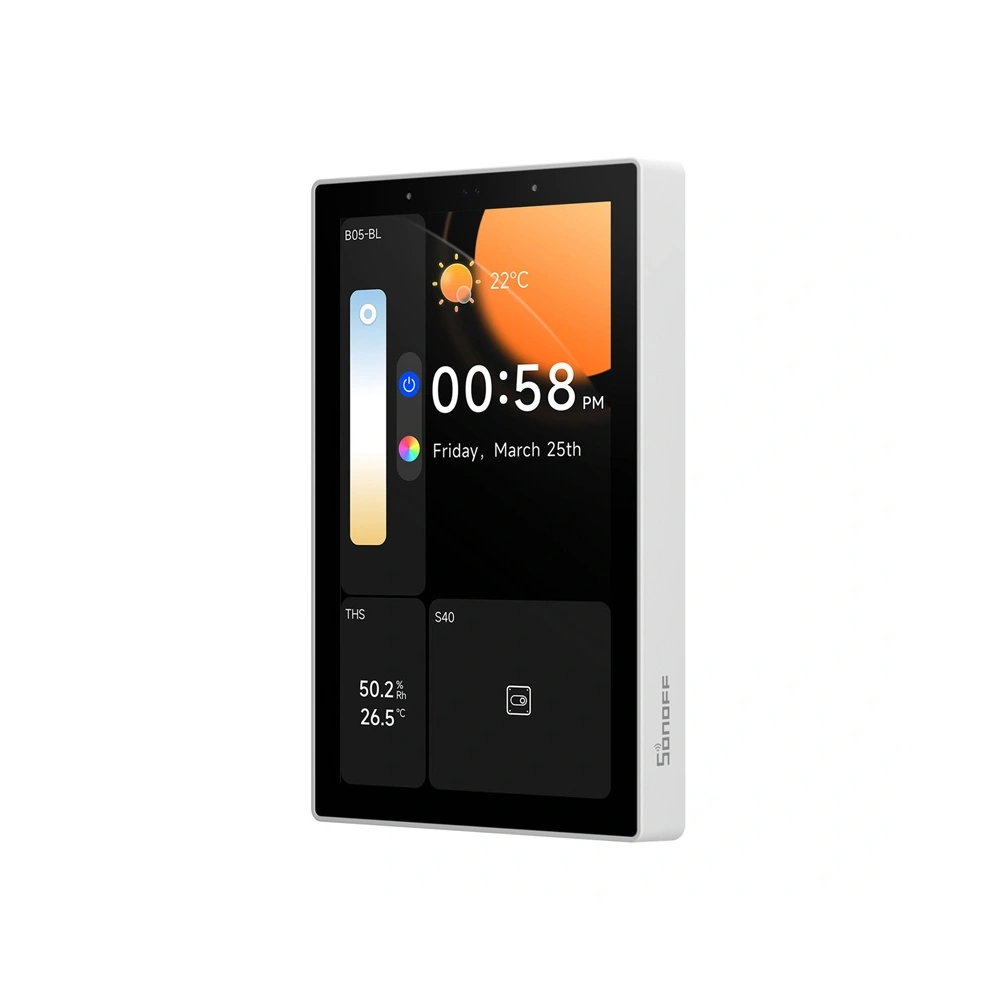

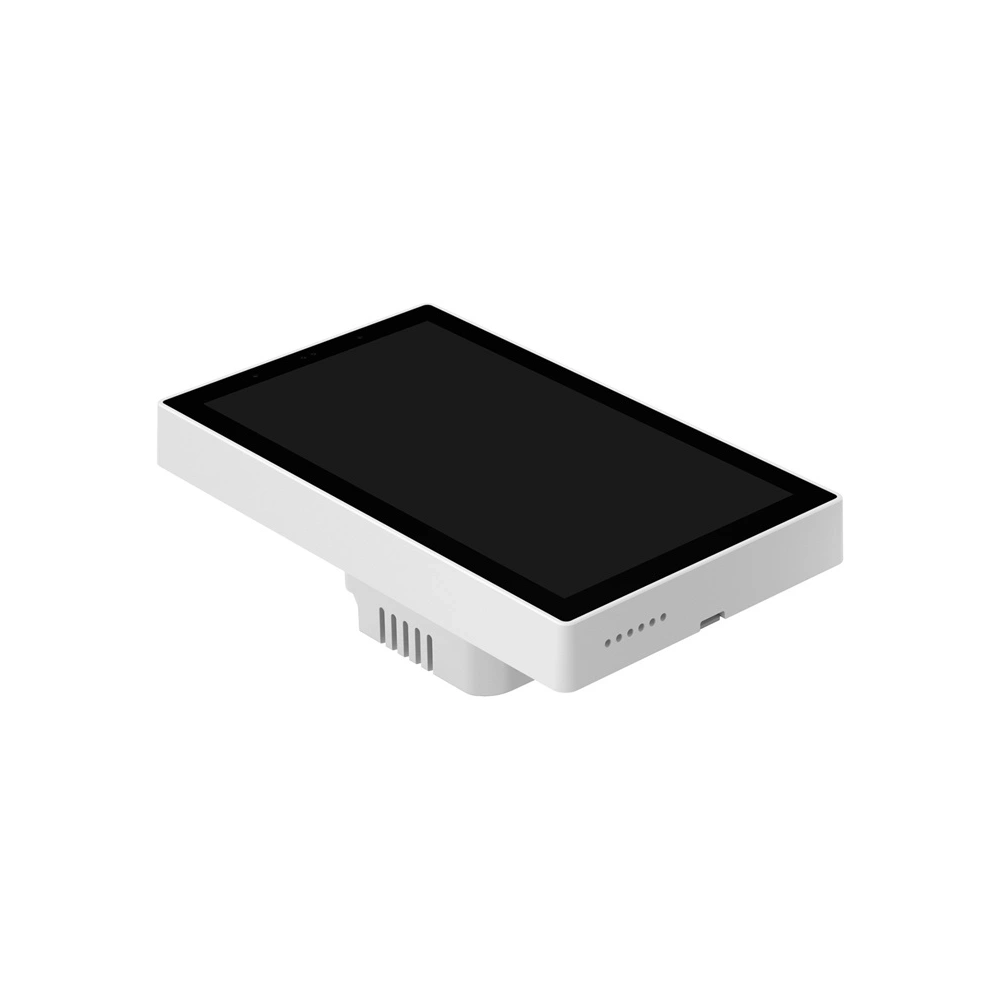

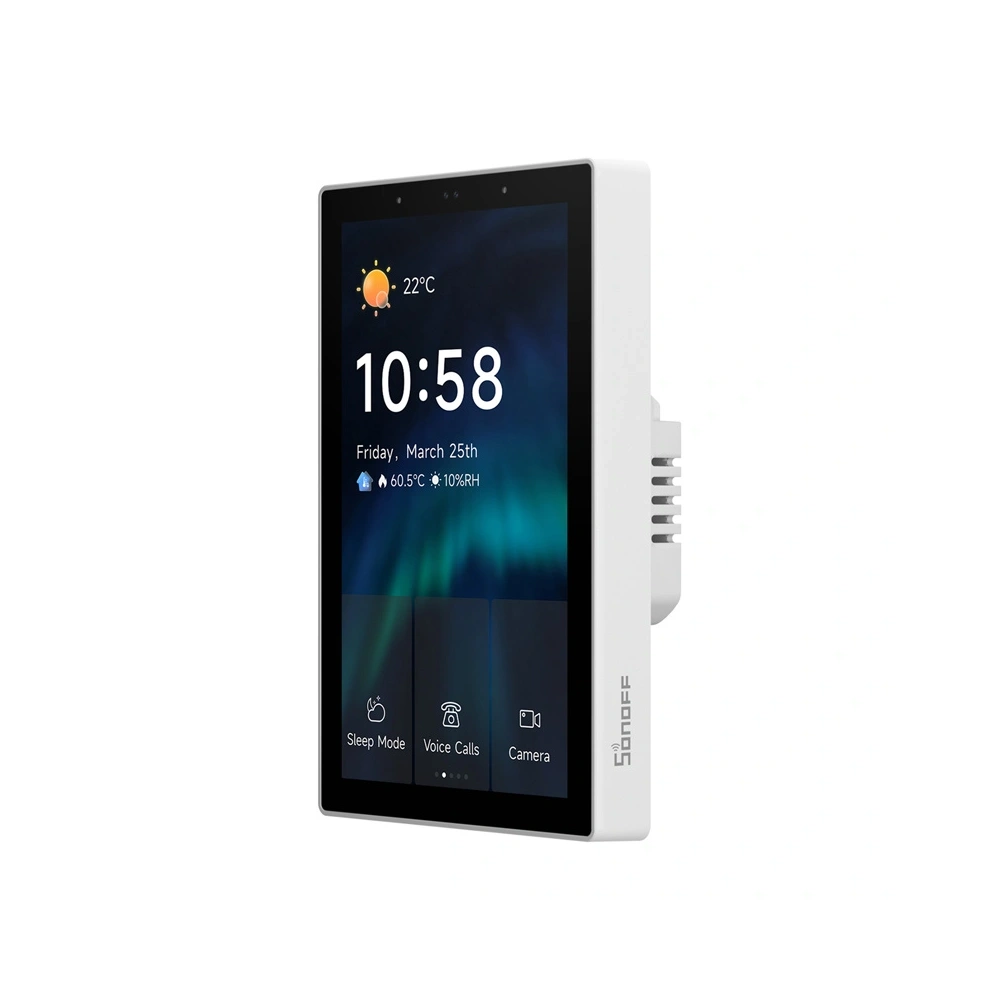

The SONOFF NSPanel Pro 120 control panel integrates WiFi, Bluetooth, Zigbee 3.0, and Matter, providing full control over the smart home. With a 4.7” TFT LCD touchscreen with a resolution of 750 x 1334 px and an intuitive interface, the device allows management of lighting, temperature, security systems, and also enables voice calls. The built-in Zigbee 3.0 hub and Matter controller ensure broad compatibility, allowing for the addition of devices from various manufacturers. Support for cameras, energy consumption monitoring, and configurable security modes make the panel the heart of a modern, automated home.
Versatile Zigbee hub and Matter support
The NSPanel Pro 120 serves as an advanced Zigbee 3.0 gateway, allowing for quick addition and management of devices. Sonoff and equipment compatible with the Zigbee standard. The built-in Matter support allows for controlling devices from various manufacturers, providing flexibility in building a smart ecosystem. The panel can also be switched to Zigbee router mode, which enhances the range and stability of the network, enabling even better communication between devices.
Intelligent temperature control
The device works with sensors such as SNZB-02P and TH Elite, allowing for precise temperature control in rooms. You can monitor conditions in real-time, set schedules, and control air conditioning or heating. Automatic temperature regulation increases user comfort and allows for energy savings.
Advanced security and monitoring system
There is a possibility to configure three security modes that adjust the operation of the alarm system to the situation. The Away mode activates the alarm upon detecting motion or opening doors, sending a notification to your phone. The Home mode monitors entry, responding to unauthorized openings. There is also a Sleep mode available. Integration with cameras allows for live viewing, and the built-in microphone and speaker enable two-way voice communication, making the device capable of functioning as an intercom.
Interface personalization and convenient control
Customize the screen appearance to your own preferences. There are two styles of the main screen available – classic and simplified, as well as 12 wallpapers and the option to add your own photos. Widgets can be arranged according to your needs, creating an intuitive home control panel. The display supports up to 16.7 million colors, and the built-in ICC light sensor automatically adjusts the screen brightness, ensuring comfortable use both during the day and at night.
Monitoring energy consumption and website maintenance
The panel works with energy monitoring devices such as POW Elite, POW Origin, S40, S31, and DUALR3, allowing real-time tracking of electricity consumption. This way, you can monitor which devices consume the most energy and optimize its usage. The NSPanel Pro 120 also supports web browsing, providing quick access to Google, YouTube, Pinterest, and other services – just save the address to open the page with one click.
Performance and advanced communication features
The quad-core ARM Cortex-A35 processor ensures smooth operation and fast response times. 2 GB of DDR3 RAM and 8 GB of internal eMMC 5.1 storage allow for seamless control of multiple devices simultaneously. The built-in microphone and speaker enable voice calls, both between panels and with the user's phone through the eWeLink app.
Integration with home automation systems
The eWeLink-Remote Control allows for local control of devices within automation scenarios. You can also take advantage of integrations with systems such as Homebridge, Node-RED, and Paral-Sync, as well as utilize Open API to create your own automation solutions. Support for 32 languages, a clock, a 7-day weather forecast, and a guest mode are additional features that enhance the device's functionality.
| Producer | SONOFF |
|---|---|
| Model | The text "NSPanel120PW" appears to be a product name or model number and does not require translation as it is likely recognized in English as well. If you have any additional context or text you would like translated, please provide it! |
| Screen size | 4.7” |
| Resolution | 750 x 1334 px |
| Power supply | 100-240V~ 50/60Hz 0.15A max. |
| Processor | Quad-core ARM Cortex-A35 |
| GPU | Mali G31-2EE |
| Communication | Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Zigbee 3.0 |
| Working humidity | from 5% to 90% RH, without condensation |
| Operating temperature | from 0°C to 40°C |
| Housing materials | PC V0 + CRS + tempered glass |
| Dimensions | 122.5 x 74.5 x 39.5 mm |
| Certificates | CE/FCC/ISED/RoHS |
