Temperature sensor Sonoff DS18B20 for TH10/TH16
Description
Temperature Sensor Sonoff

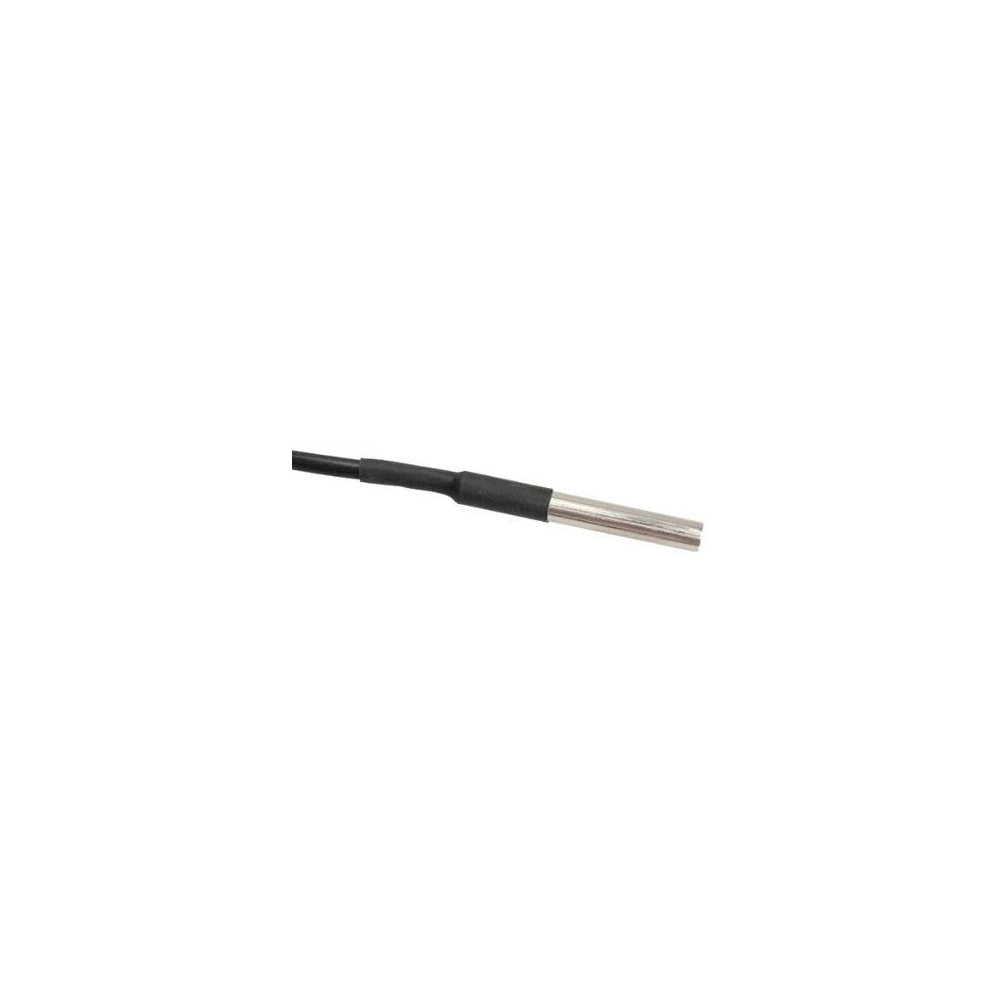

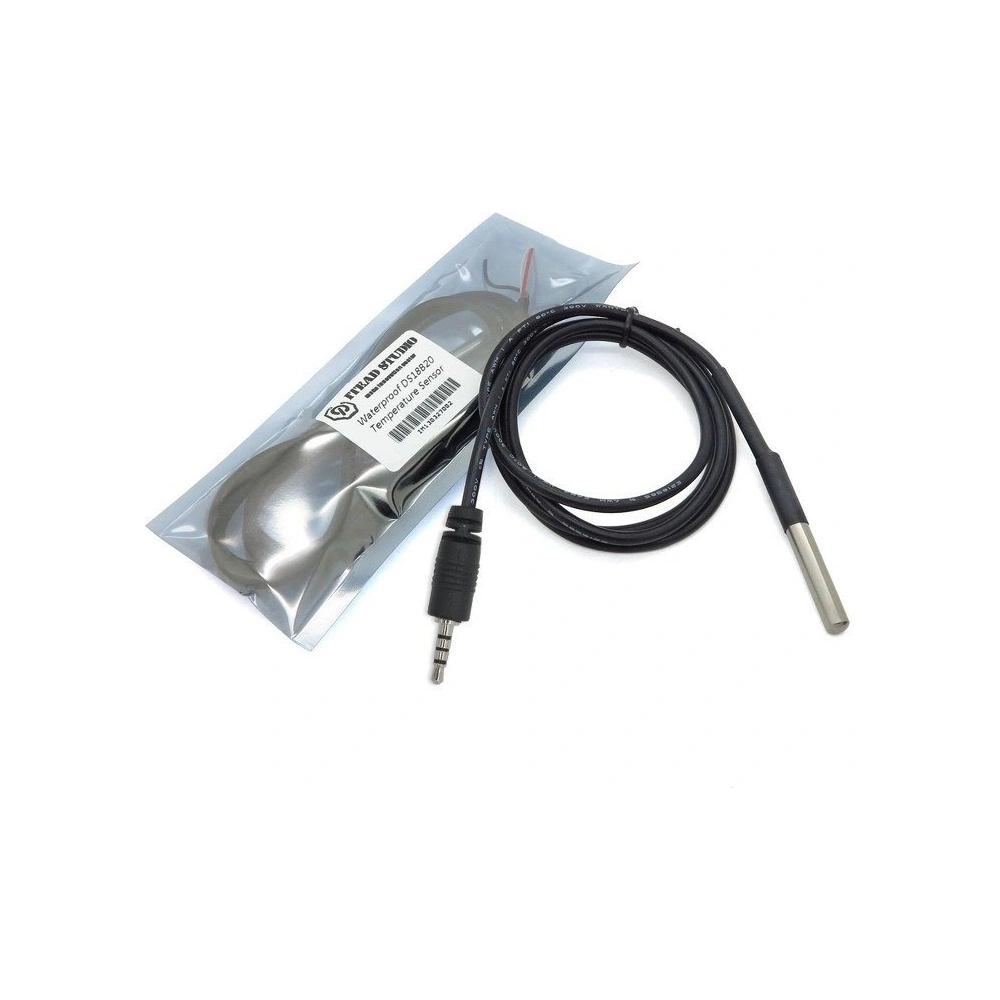

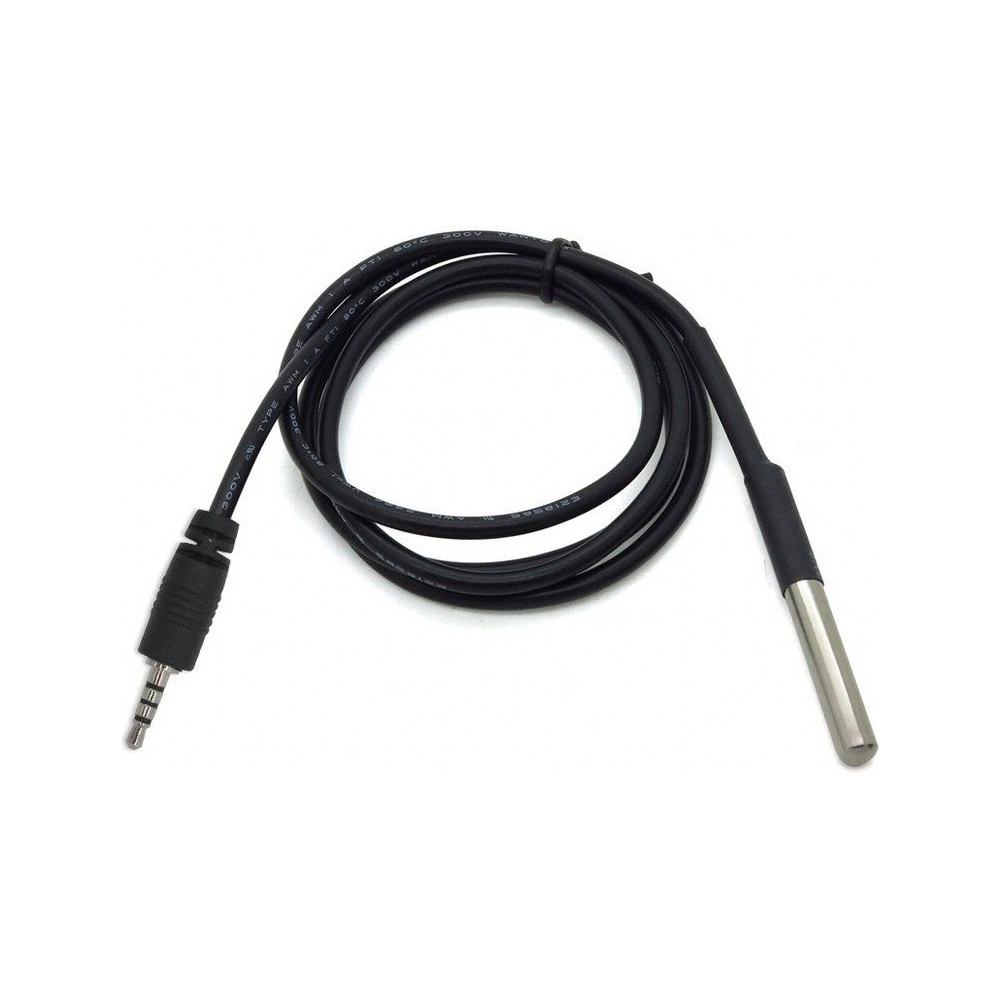

Sonoff DS18B20 is a temperature sensor with a Jack connector, designed for smart switches TH10 / TH16. The device is waterproof, resistant to moisture and rust, thanks to the use of high-quality stainless steel in its production. It has only a single bus interface, with no additional components.
Specification
| Model | DS18B20 |
|---|---|
| Power Supply | 3.0V to 5.5V |
| Adjustable Resolution | 9-12 |
| Operating Temperature Range | -55 °C to +125 °C |

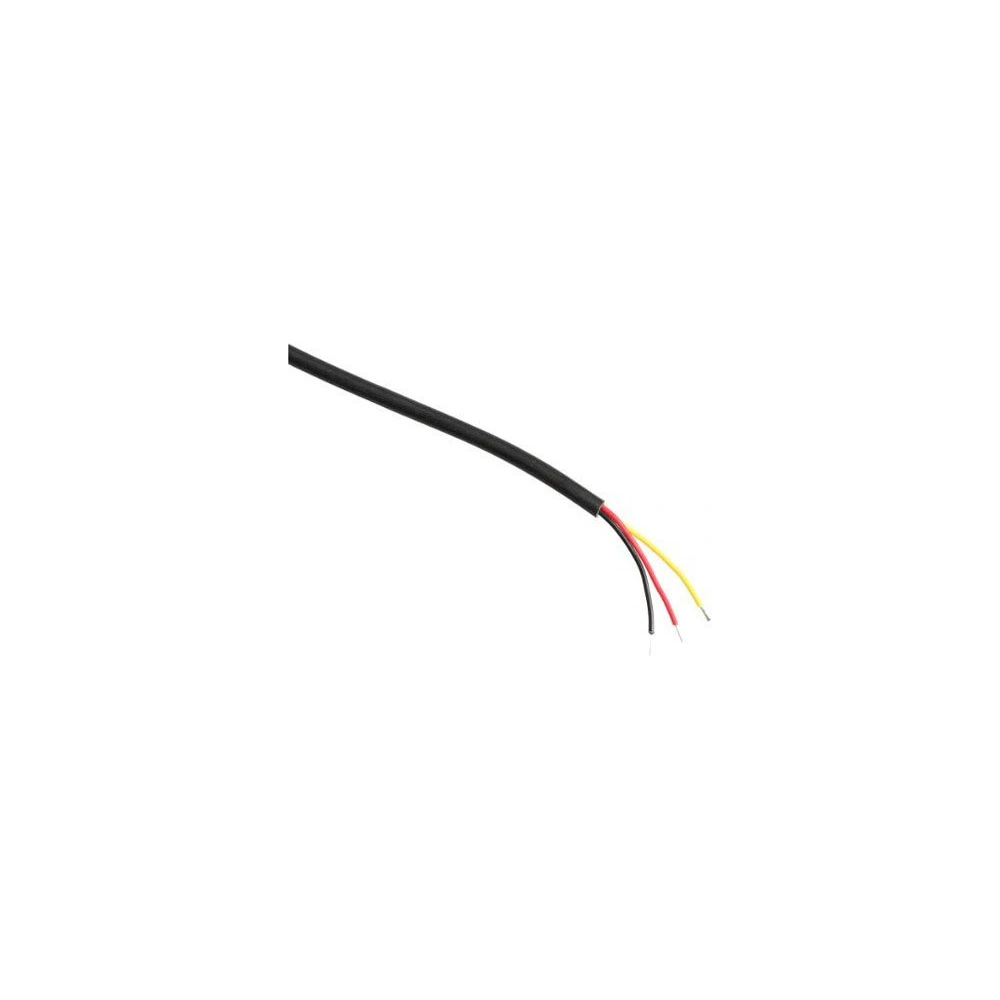

| Output Wires | red (VCC), black (GND), yellow (DATA) |
| Cable Length | 100 cm |
| Cable Dimensions | 6 × 45 mm |
| Material | Stainless Steel |
Description
Temperature Sensor Sonoff
Sonoff DS18B20 is a temperature sensor with a Jack connector, designed for smart switches TH10 / TH16. The device is waterproof, resistant to moisture and rust, thanks to the use of high-quality stainless steel in its production. It has only a single bus interface, with no additional components.
Specification
| Model | DS18B20 |
|---|---|
| Power Supply | 3.0V to 5.5V |
| Adjustable Resolution | 9-12 |
| Operating Temperature Range | -55 °C to +125 °C |
| Output Wires | red (VCC), black (GND), yellow (DATA) |
| Cable Length | 100 cm |
| Cable Dimensions | 6 × 45 mm |
| Material | Stainless Steel |
